AWS Managed Microsoft AD Deep Dive Part 5 – Security

AWS Managed Microsoft AD Deep Dive  Part 5 – Security

You didn’t think I was done with AWS Managed Microsoft AD yet did you?  In this post I’m going to perform some tests to evaluate the protocols and ciphers suites available for LDAPS as well as checking out the managed Domain Controllers support for NTLMv1 and the cipher suites supported for Kerberos.  I’ll be using the same testing mechanisms I used when for my series on Microsoft Azure Active Directory Domain Services.

For those of you who are new to the series, I’ve been performing a deep dive review of AWS Managed Microsoft AD which is Amazon’s answer to a managed Windows Active Directory service.  In the first post I provided a high level overview of the service, in the second post I covered the setup of the service, the third post reviewed the directory structure, pre-configured security principals and group policies, and the delegated security model, and in the fourth entry I delved into how Amazon has managed to delegate configuration of LDAPS and the requirements that pop up due to their design choices.  I highly recommend you review those posts as well as my series on Microsoft Azure AD Domain Services if you’d like to compare the two services.

I’ve made a modification to my lab and have added another server named SERVER02 which will be running Linux.  The updated Visio looks like this.

labpart5

Server01 has been configured with the Windows Remote Server Administration Tools (RSAT) for Active Directory as well as holding the Active Directory Certificate Services (AD CS) role and being configured as a root Enterprise CA.  I’ve also done all the necessary configuration to distribute the certificates to the managed domain controllers and have successfully tested LDAPS.  Server02 will be used to test SSLv3 and NTLM.  I’ve modified the instance to use the domain controllers as DNS servers by overriding DHCP settings as outlined in this article.

The first thing I’m going to do is test to see if SSLv3 has been disabled on the managed domain controllers.  Recall that the managed Domain Controllers are running Windows Server 2012 R2 which has SSLv3 enabled by default.  It can be disabled by modifying the registry as documented here.  Believe it or not you can connect to the managed domain controllers registry via a remote registry connection.  Checking the registry location shows that the SSLv3 node hasn’t been created which is indicative of SSLv3 still being enabled.


To be sure I checked it using the same method that I used in my Azure AD Domain Services post which is essentially compiling another version of openssh that supports SSLv3.  After the customized version was installed and I queried the Domain Controller over port 636 which you can see in the screenshot below that SSLv3 is still enabled.  Suffice to say this surprised me considering what I had seen so far in regards to the security of the service.  This will be a show stopper for some organizations in adopting the service especially since it isn’t configurable by the customer that I observed.


So SSLv3 is enabled and presents a risk.  Have the cipher suites been hardened?  For this I’ll again use a tool developed by Thomas Pornin.   The options I’m using perform an exhaustive search across the typically offered cipher suites, space the connections out by 1 second, and start with a minimum of sslv3.


The results are what I expected and mimic the results I saw when testing Azure AD Domain Services, minus the support for SSLv3 which Microsoft has disabled in their managed offering.  The supported cipher suites look to be the out of the box defaults for Server 2012 R2 and include RC4 and 3DES which are ciphers with known vulnerabilities.  The inability to disallow the ciphers might again be a show stopper for organizations with strict security requirements.

The Kerberos protocol is a critical component of Windows Active Directory providing the glue to hold the service together including (but in no way exhaustive) being behind the users authentication to a domain-joined machine, the single sign-on experience, and the ability to form trusts with other forests.  Given the importance of the protocol, it’s important to ensure its backed by strong ciphers.  The ciphers supported by a Windows Active Directory are configurable and can be checked by looking at the msDS-SupportedEncryptionTypes attribute of a domain controller object.

I next pulled up a domain controller object in ADUC and reviewed the attribute.  The attribute on the managed domain controllers has a value of 28, which is the default for Windows Server 2012 R2.  The value translates to support of the following cipher suites:

  • RC4_HMAC_MD5
  • AES128_CTS_HMAC_SHA1
  • AES256_CTS_HMAC_SHA1_96

These are the same cipher suites supported by Microsoft’s Azure AD Domain Services service.  In this case both vendors have left the configuration to the defaults.

Lastly, to emulate my testing Azure AD Domain Services, I tested support for NTLMv1.  By default Windows Server 2012 R2 supports NTLMv1 due to requirements for backwards compatibility. Microsoft has long recommended disabling NTLMv1 due to the documented issues with the security of the protocol. Sadly there are a large number of applications and devices in use in enterprises which still require NTLMv1.

To test the AWS managed domain controllers I’m going to use Samba’s smbclient package on SERVER02.  I’ll use the client to connect to the domain controller’s share from SERVER02 using NTLM.  I first installed the smbclient package by running:

yum install samba-client.

The client enforces the use NTLMV2 in smbclient by default so I needed to make some modifications to the global section of the smb.conf file by adding client ntlmv2 auth = no. This option disables NTLMv2 on smbclient and will force it to use NTLMv1.


In order to see whether or not the client was using NTLMv1 when connecting to the domain controllers, I started a packet capture using tcpdump before initiating a connection with the smbclient.


I then transferred the packet capture over to my Windows box with WinSCP, opened the capture with WireShark, and navigated to the packet containing the Session Setup Request.  In the parsed capture we don’t see an NTLMv2 Response which means NTLMv1 was used to authenticate to the domain controller indicating NTLMv1 is supported by the managed domain controllers.



5awsadds5



So what can we take from the findings of this analysis?

  1. Amazon has left the secure transport protocols to the defaults which means SSLv3 is supported.
  2. Amazon has left the cipher suites to the defaults which means both RC4 and 3DES cipher suites are supported for both LDAPS and Kerberos.

I’d really like to see Amazon address the support for SSLv3 as soon as possible.  There is no reason I can see why that shouldn’t be shut off by default.  Similar to my requests to Microsoft, I’d like to see Amazon allow the supported cipher suites to be configurable via the AWS Management Console.  These two changes would save organizations with strict security requirements, such as those in the public sector, to utilize the services without introducing significant risk (and audit headaches).

In my next post I’ll demonstrate how the service can be leveraged to provide Windows Active Directory service to on-premises machines or machines in another public cloud as well as exploring how to create a forest trust with the service.

See you next post!



AWS Managed Microsoft AD Deep Dive Part 4 – Configuring LDAPS

AWS Managed Microsoft AD Deep Dive  Part 4 – Configuring LDAPS

I’m back again with another entry in my deep dive into AWS Managed Microsoft Active Directory (AD).  So far I’ve provided an overview of the service, covered how to configure the service, and analyzed the Active Directory default configuration such as the directory structure, security principals, password policies, and group policy setup by Amazon for new instances.  In this post I’m going to look at the setup of LDAPS and how Amazon supports configuration of it in the delegated model they’ve setup for the service.

Those of you that have supported a Windows AD environment will be quite familiar with the wonders and sometimes pain of the Lightweight Directory Access Protocol (LDAP).  Prior to the modern directories such as AWS Cloud Directory, Azure Active Directory the LDAP protocol served critical roles by providing both authentication and a method of which to work with data stored in directory data stores such as Windows AD.  For better or worse the protocol is still relevant today when working with Windows AD for both of the above capabilities (less for authentication these days if you stay away from backwards-thinking vendors).  LDAP servers listen on port 389 and 636 with 389 maintaining traffic in the clear (although there are exceptions where data is encrypted in transit such as Microsoft’s usage of Kerberos encryption or the use of StartTLS (credit to my friend Chris Jasset for catching my omission of StartTLS)) and 636 (LDAPS) providing encryption in transit via an SSL tunnel (hopefully not anymore) or a TLS tunnel.

Windows AD maintains that pattern and serves up the content of its data store over LDAP over ports 389 and 636 and additionally ports 3268 and 3269 for global catalog queries.  In the assume breach days we’re living in, we as security professionals want to protect our data as it flows over the network which means we’ll more often than not (exceptions are again Kerberos encryption usage mentioned above) be using LDAPS over ports 636 or 3269.  To provide that secure tunnel the domain controllers will need to be setup with a digital certificate issued by a trusted certificate authority (CA).    Domain Controllers have unique requirements for the certificates they use.  If you’re using  Active Directory Certificate Services (AD CS) Microsoft takes care of providing the certificate template for you.

So how do you provision a certificate to a Domain Controller’s certificate store when you don’t have administrative privileges such as the case for a managed service like AWS Managed Active Directory?   For Microsoft Azure Active Directory Domain Services (AAD DS) the public certificate and private key are uploaded via a web page in the Azure Portal which is a solid way of doing it.  Amazon went in a different and instead takes advantage of certificate autoenrollment.  If you’re not familiar with autoenrollment take a read through this blog.  In short, it’s an automated way to distribute certificates and eliminate some of the overheard of manually going through the typical certificate lifecycle which may contain manual steps.

If we bounce back to the member server in my managed domain, open the Group Policy Management Console (GPMC), and navigate to the settings tab of the AWS Managed Active Directory Policy we see that autoenrollment has been enabled on the domain controllers.  This setting explains why Amazon requires a member server joined to the managed domain be configured running AD CS.  Once the AD CS instance is setup, the CA has been configured either to as a root or subordinate CA, and a proper template is enabled for autoenrollment, the domain controllers will request the appropriate certificate and will begin using it for LDAPS.


If you’ve ever worked with AD CS you may be asking yourself how you’ll be able to install AD CS in a domain where you aren’t a domain administrator when the Microsoft documentation specifically states you need to be a member of the Enterprise Admins and root domains Domain Admins group.  Well folks that is where the AWS Delegated Enterprise Certificate Authority Administrators group comes into play.  Amazon has modified the forest to delegate the appropriate permissions to install AD CS in a domain environment.  If we navigate to the CN=Public Key Services, CN=Services, CN=Configuration using ADSIEdit and view the Security for the container we see this group has been granted full permissions over the node allowing the necessary objects to be populated underneath it.


I found it interesting that in the instructions provided by Amazon for enabling LDAPS the instructions state the Domain Controller certificate template needs to modified to remove the Client Authentication EKU.  I’d be interested in knowing the reason for modifying the Domain Controller certificate.  If I had to guess it’s to prevent the domain controller from using the certificate outside of LDAPS such as for mutual authentication during smart card logon.  Notice that from this article domain controllers only require the Server Authentication EKU when a certificate is only used to secure LDAPS.

I’ve gone ahead and installed AD CS on SERVER01 as an Enterprise root CA and thanks to the delegation model, the CA is provisioned with all the necessary goodness in CN=Public Key Services.  I also created the new certificate template following the instructions from Amazon.  The last step is to configure the traffic flow such that the managed domain controllers can contact the CA to request a certificate.  The Amazon instructions actually have a typo in them.  On Step 4 it instructs you to modify the security group for your CA and to create a new inbound rule allowing all traffic from the source of your CA’s AWS Security group.  The correct security group is actually the security group automatically configured by Amazon that is associated with the managed Active Directory instance.

At this point you’ll need to wait a few hours for the managed domain controllers to detect the new certificates available for autoenrollment.  Mine actually only took about an hour to roll the certificates out.


To test the service I opened LDP.EXE and established a secure session over port 636 and all worked as expected.


Since I’m a bit OCD I also pulled the certificate using openssl to validate it’s been issued by my CA.  As seen in the screenshot below the certificate was issued by the geekintheweeds-CA which is the CA I setup earlier.


Beyond the instructions Amazon provides, you’ll also want to give some thought as to how you’re going to handle revocation checks. Keep in mind that by default AD CS stores revocation information in AD. If you have applications configured to check for revocation remember to ensure those apps can communicate with the domain controllers over port 389 so design your security groups with this in mind.

Well folks that will wrap up this post. Now that LDAPS is configured, I’ll begin the tests looking at the protocols and ciphers supported when accessing LDAPS as well as examining the versions of NTLM supported and the encryption algorithms supported with Kerberos.

See you next post!



AWS Managed Microsoft AD Deep Dive Part 3 – Active Directory Configuration

AWS Managed Microsoft AD Deep Dive  Part 3 – Active Directory Configuration

Welcome back to my series on AWS Managed Microsoft Active Directory (AD).  In my first post I provided an overview of the service.  In the second post I covered the setup of an AWS Managed Microsoft AD directory instance and demoed the seamless domain-join of a Windows EC2 instance.  I’d recommend you reference back to those posts before you jump into this.  I’ll also be referencing my series on Azure Active Directory Domain Serices (AAD DS), so you may want to take a read through that as well with the understanding it was written in February of 2018 and there may be new features in public preview.

For this post I’m going to cover the directory structure, security principals, group policy objects, and permissions which are created when a new instance of the managed service is spun up.  I’ll be using a combination of PowerShell and the Active Directory-related tools from the Remote Server Administrator Tools.  For those of you who like to dig into the weeds, this will be a post for you.  Shall we dive in?

Let’s start with the basics.  Opening the Active Directory Users and Computers (ADUC) Microsoft Management console (MMC) as the “Admin” account I created during setup displays the directory structure.  Notice that there are three organizational units (OU) that have been created by Amazon.

2awsadds1

The AWS Delegated Groups OU contains the groups Amazon has configured that have been granted delegated rights to perform typical administrative activities in the directory.  A number of the activities would have required Domain Admin or Enterprise Admin by default which obviously isn’t an option within a managed service where you want to limit the customer from blowing up AD.  Notice that Amazon has properly scoped each of the groups to allow for potential management from another trusted domain.


The group names speak for themselves but there are a few I want to call out.  The AWS Delegated Administrators group is the most privileged customer group within the service and has been nested into all of the groups except for the AWS Delegated Add Workstations To Domain Users, which makes sense since the AWS Delegated Administrators group has full control over the customer OU as we will see soon.


The AWS Delegated Kerberos Delegation Administrators group allows members to configure account-based Kerberos delegation.  Yes, yes, I know Resource-Based Constrained Delegation is far superior but there may be use cases where the Kerberos library being used doesn’t support it.  Take note that Azure Active Directory Domain Services (AAD DS) doesn’t support account-based Kerberos Constrained Delegation.  This a win for Amazon in regards to flexibility.

Another group which popped out to me was AWS Delegated Sites and Services.  Members of this group allow you to rename the Default-First-Site.  You would do this if you wanted it to match a site within your existing on-premises Windows AD to shave off a few seconds of user authentication by skipping the site discovery process.

The AWS Delegated System Management Administrators grants members full control over the domainFQDN\System\System Management container.  Creation of data in the container is a requirement for applications like Microsoft SCOM and Microsoft SCCM.

There is also the AWS Delegated User Principal Name Suffix Administrators which grants members the ability to create explicit user principal names.  This could pop up as a requirement for something like synchronize to Office 365 where your domain DNS name isn’t publicly routable and you have to go the alternate UPN direction.  Additionally we have the AWS Delegated Enterprise Certificate Authority Administrators which allows for deployment of a Microsoft CA via Active Directory Certificate Services (AD CS) by granting full control over CN=Public Key Services is the Configuration partition.  We’ll see why AD CS is important for AWS Managed Microsoft AD later in the series.  I like the AWS Delegated Deleted Object Lifetime Administrators which grants members the ability to set the lifetime for objects in the Active Directory Recycle Bin.

The next OU we have is the AWS Reserved OU.  As you can imagine, this is Amazon’s support staff’s OU.  Within it we have the built-in Administrator.  Unfortunately Amazon made the same mistake Microsoft did with this account by making it a god account with membership in Domain Admins, Enterprise Admins, and Schema Admins. With the amount of orchestration going into the solution I’d have liked to see those roles either broken up into multiple accounts or no account holding standing membership into such privileged roles via privileged access management system or red forest design.   The AWS Application and Service Delegated Group has a cryptic description (along with typos). I poked around the permissions and see it has write to the ServicePrincipalName attribute of Computer objects within the OU.  Maybe this comes into play with WorkDocs or WorkMail integration?  Lastly we have the AWSAdministrators which has been granted membership into the AWS Delegated Administrators group granting it all the privileges the customer administrator account has.  Best guess is this group is used by Amazon for supporting the customer’s environment.

2awsadds4

The last OU we’ll look at is the customer OU which takes on the NetBIOS name of the domain.  This is where the model for this service is similar to the model for AAD DS in that the customer has full control over an OU(s).  There are two OUs created within the OU named Computers and Users.  Amazon has setup the Computers OU and the User OU as the default locations for newly domain-joined computer objects and new user objects.   The only object that is pre-created in these OUs is the customer Admin account which is stored in the Users OU.  Under this OU you are free to do whatever needs doing.  It’s a similar approach as Microsoft took with AAD DS but contained one OU deep vs allowing for creation of new OUs at the base like in AAD DS.


Quickly looking at Sites and Subnets displays a single default site (which can be renamed as I mentioned earlier).  Amazon has defined the entirety of the available private IP address space to account for any network whether it be on-prem or within a VPC.


As for the domain controllers, both domain controllers are running Windows Server 2012 at the forest and domain functional levels of 2012 R2.


Shifting over group policy, Amazon has made some interesting choices and has taken extra steps to further secure the managed domain controllers.  As you can see from the screenshot below, there four custom group policy objects (GPOs) created by default by Amazon.  Before we get into them, let’s first cover the Default Domain Policy (DDP) and Default Domain Controllers Policy (DDCP) GPO.  If you look at the image below, you’ll notice that while the DDCP exists it isn’t linked to the Domain Controllers OU.  This is an interesting choice, and not one that I would have made, but I’d be very curious as to their reasoning for their decision to remove the link.  Best practice would have been to leave it linked but create additional GPOs would override the settings in it with your more/less restrictive settings.  The additional GPOs would be set with a lower link order which would give them precedence over the DDCP.  At least they’re not modifying default GPOs, so that’s something. 🙂

Next up we have the DDP which is straight out of the box minus one change to the setting Network Security: Force logoff when logon hours expire.  By default this setting disabled and Amazon has enabled it to improve security.

The ServerAdmins GPO at the top of the domain has one setting enabled which adds the AWS Delegated Server Administrators to the BUILTIN\Administrators group on all domain-joined machine.  This setting is worth paying attention because it explains the blue icon next to the AWS Reserved OU.  Inheritance has been blocked on that OU probably to avoid the settings in the ServerAdmin GPO being applied to any Computer objects created within it.  The Default Domain Policy has then been directly linked to the OU.

Next up we have the other GPO linked to the AWS Reserved OU named AWS Reserved Policy:User.  The policy itself has a few User-related settings intended to harden the experience for AWS support staff including turning on screensavers and password protecting them and preventing sharing of files within profiles.  Nothing too crazy.

Moving on to the Domain Controllers OU we see that the two policies linked are AWS Managed Active Directory Policy and TimePolicyPDC.  The TimePolicyPDC GPO simply settings the authoritative the NTP settings on the domain controllers such as configuring the DCs to use Amazon NTP servers.  The AWS Managed Active Directory Policy is an interesting one.  It contains all of the policies you’d expect out of the Default Domain Controllers Policy GPO (which makes sense since it isn’t linked) in addition to a bunch of settings hardening the system.  I compared many of the settings to the STIG for Windows Server 2012 / 2012 R2 Domain Controllers and it very closely matches.  If I had to guess that is what Amazon is working with on a baseline which might make sense since Amazon touts the managed service as PCI and HIPAA compliant with a few minor changes on the customer end for password length/history and account lockout.  We’ll cover how those changes are possible in a few minutes.

Compare this to Microsoft’s AAD DS which is straight up defaults with no ability to further harden.  Now I have no idea if that’s in the roadmap for Microsoft or they’re hardening the system in another manner, but I imagine seeing those GPOs that are enforcing required settings will make your auditors that much happier.  Another +1 for Amazon.


So how would a customer harden a password policy or configure account lockout?  If you recall from my blog on AAD DS, the password policy was a nightmare.  There was a zero character required password length making complexity dictate your length (3 characters woohoo!).  If you’re like me the thought of administrators having the ability to set three character passwords on a service that can be exposed to the Internet via their LDAPS Internet endpoint (Did I mention that is a terrible design choice) you have a recipe for disaster.  There was also no way to setup fine grained password policies to correct this poor design decision.

Amazon has taken a much saner and more security sensitive approach.  Recall from earlier there was a group named AWS Delegated Fine Grained Password Policy Administrators.  Yes folks, in addition to Amazon keeping the Default Domain Policy the out of the box defaults (better than nothing), Amazon also gives you the ability to customize five pre-configured fine grained password policies.  With these policies you can set the password and lockout settings that are required by your organization.  A big +1 for Amazon here.

2awsadds9

That wraps up this post.  As you can see from this entry Amazon has done a stellar job building security into this managed service, allowing some flexibility for the customer to further harden the systems, all the while still being successful in delegating commonly performed administrative activities back to the customer.

In my next post I’ll walk through the process to configure LDAPS for the service.  It’s a bit funky, so it’s worth an entry.  Once LDAPS is up and running, I’ll follow it up by examining the protocols and cipher suites supported by the managed service.

See you next post!

AWS Managed Microsoft AD Deep Dive Part 2 – Setup

AWS Managed Microsoft AD Deep Dive  Part 2 – Setup

Today I’ll continue my deep dive into AWS Managed Microsoft AD.  In the last blog post I provided an overview of the reasons an organization would want to explore a managed service for Windows Active Directory (Windows AD).  In this post I’ll be providing an overview of my lab environment and demoing how to setup an instance of AWS Managed Microsoft AD and seamlessly joining a Windows EC2 instance.

Let’s dive right into it.

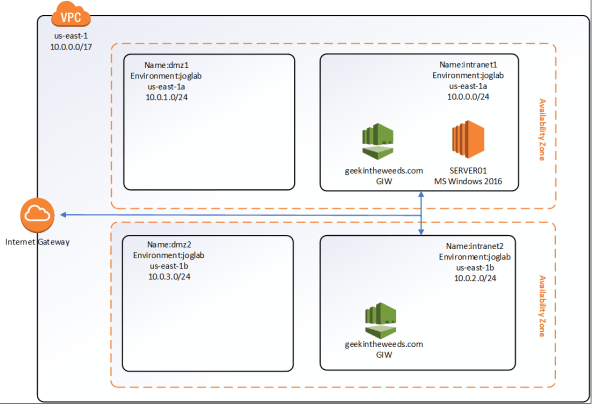

Let’s first cover what I’ll be using as a lab.  Here I’ve setup a virtual private cloud (VPC) with default tenancy which is a requirement to use AWS Managed Microsoft AD.  The VPC has four subnets configured within it named intranet1, intranet2, dmz1, and dmz2.  The subnets intranet1/dmz1 and intranet2/dmz2 provide us with our minimum of two availability zones, which is another requirement of the service.  I’ve created a route table that routes traffic destined for IP ranges outside the VPC to an Internet Gateway and applied that route table to both the intranet1 and intranet2 subnets.  This will allow me to RDP to the EC2 instances I create.  Later in the series I’ll configure VPN connectivity with my on-premises lab to demonstrate how the managed AD can be used on-prem.  Below is a simple Visio diagraming the lab.

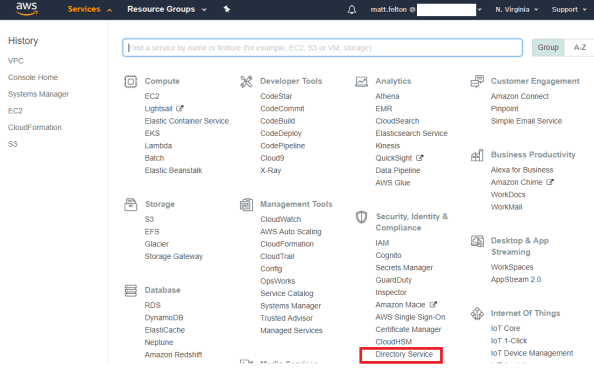

To create a new instance of AWS Managed Microsoft AD, I’ll be using the AWS Management Console.  After successfully logging in, I navigate to the Services menu and select the Directory Service link under the Security, Identity & Compliance section as seen below.


The Directory Service page then loads which is a launching pad for configuration of the gamut of AWS Directory Services including AWS Cloud Directory, Simple AD, AD Connector, Amazon Cognito, and of course AWS Managed Microsoft AD.  Any directory instance that you’ve created would appear in the listing to the right.  To create a new instance I select the Set up Directory button.


The Set up a directory page loads and I’m presented with the options to create an instance of AWS Managed Microsoft AD, Simple AD, AD Connector, or an Amazon Cognito User Pool.  Before I continue, I’ll provide the quick and dirty on the latter three options.  Simple AD is actually Samba made to emulate some of the capabilities of Windows Active Directory.  The AD Connector acts as a sort of proxy to interact with an existing Windows Active Directory.  I plan on a future blog series on that one.  Amazon Cognito is Amazon’s modern authentication solution (looks great for B2C)  providing Open ID Connect, OAuth 2.0, and SAML services to applications.  That one will warrant a future blog series as well.  For this series we’ll be select the AWS Managed Microsoft AD option and clicking the Next button.

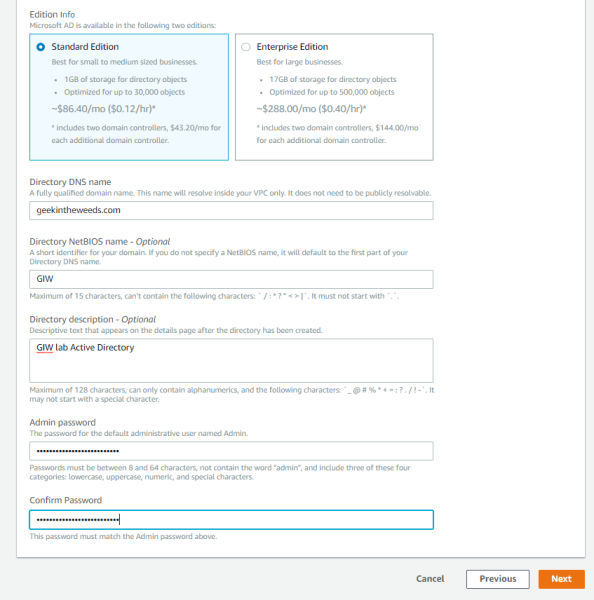

A new page loads where we configure the directory information.  Here I’m given the option to choose between a standard or enterprise offering of the service.  Beyond storage I’ve been unable to find or pull any specifications of the EC2 instances Amazon is managing in the background for the domain controllers.  I have to imagine Enterprise means more than just 16GB of storage and would include additional memory and CPU.  For the purposes of this series, I’ll be selecting Standard Edition.

Next I’ll provide the key configuration details for forest which includes the fully qualified domain name (FQDN) for the forest I want created as well as optionally specifying the NetBIOS name.  The Admin password set here is used for the delegated administrator account Amazon creates for the customer.  Make sure this password is securely stored, because if it’s lost Amazon has no way of recovering it.

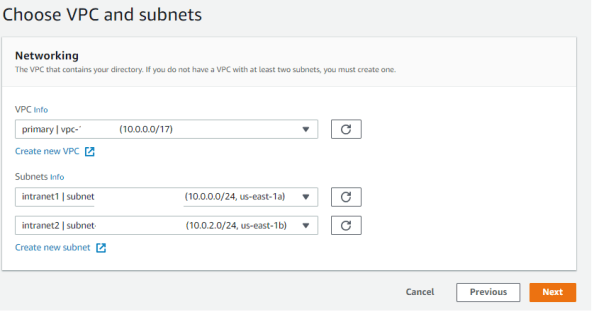

After clicking the Next button I’m prompted to select the virtual private cloud (VPC) I want to service deployed to.  The VPC used must include at least two subnets that are in different availability zones.  I’ll be using the intranet1 and intranet2 subnets shown in my lab diagram earlier in the post.

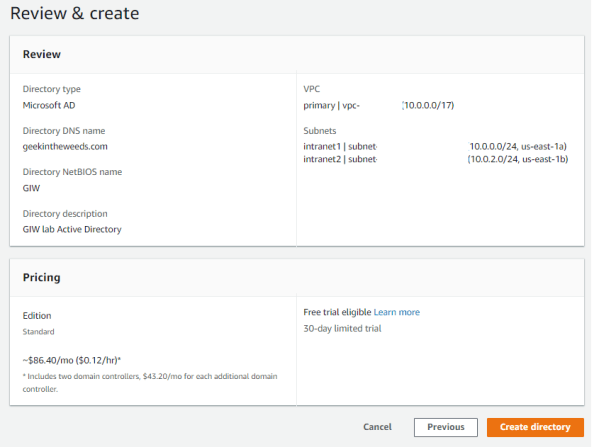

The next page that loads provides the details of the instance that will be provisioned.  Once I’m satisfied the configuration is correct I select the Create Directory button to spin up the service.

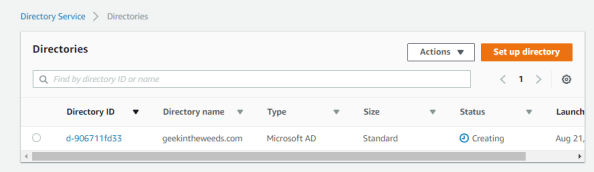

Amazon states it takes around 20 minutes or so to spin up the instance, but my experience was more like 30-45 minutes.  The main Directories Services page displays the status of the directory as Creating.  As part of this creation a new Security Group will be created which acts as a firewall for the managed domain controllers.  Unlike some organization that try to put firewalls between domain-join clients and domain controllers, Amazon has included all the necessary flows and saves  you a ton of troubleshooting with packet captures.

1awsadds8

One of the neat features offered with this service is the ability to seamlessly domain-join Windows EC2 instances during creation.  Before that feature can be leveraged an AWS Identity and Access Management (IAM) role needs to setup that has the AmazonEC2RoleforSSM attached to it.  AWS IAM is by far my favorite feature of AWS.  At a very high level, you can think of AWS IAM as being the identity service for the management of AWS resources.  It’s insanely innovative and flexible in its ability to integrate with modern authentication solutions and in how granular you can be in defining rights and permissions to AWS resources.  I could do multiple series just covering the basics (which I plan to do in the future) but to progress this entry let me briefly explain AWS IAM Roles.  Think of an AWS IAM Role as a unique security principal similar to a user but without any credentials. The role is assigned a set of rights and permissions which AWS refers to as a policy.  The role is then assumed by a human (such as federated user) or non-human (such as EC2 instance) granting the entity the rights and permissions defined in the policy attached to the role.  In this scenario the EC2 instance I create will be assuming the AmazonEC2RoleforSSM.  This role grants a number of rights and permissions within AWS’s Simple System Manager (SSM), which for your Microsoft-heavy users is a scaled down SCCM.  It requires this role to orchestrate the domain-join upon instance creation.

To create the role I’ll open back up the Services menu and select IAM from the Security, Identity & Compliance menu.

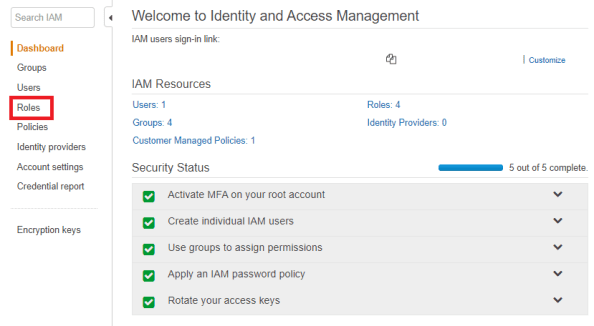

The IAM dashboard will load which provides details as to the number of users, groups, policies, roles, and identity providers I’ve created.  From the left-hand menu I’ll select the Roles link.


The Role page then loads and displays the Roles configured for my AWS account. Here I’ll select the Create Role button to start the role creation process.

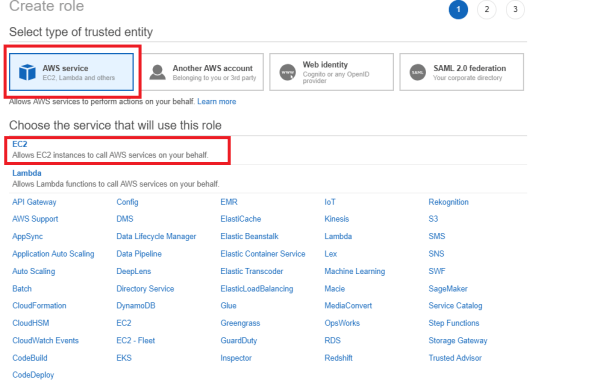

The Create Role page loads and prompts me to select a trusted entity type.  I’ll be using this role for EC2 instances so I’ll select the AWS service option and chose EC2 as the service that will use the role.  Once both options are selects I select the Next: Permission button.


Next up we need to assign a policy to the role.  We can either create a new policy or select an existing one.  For seamless domain-join with AWS Managed Microsoft AD, EC2 instances must use the AmazonEC2forSSM policy.  After selecting the policy I select the Next: Review button.

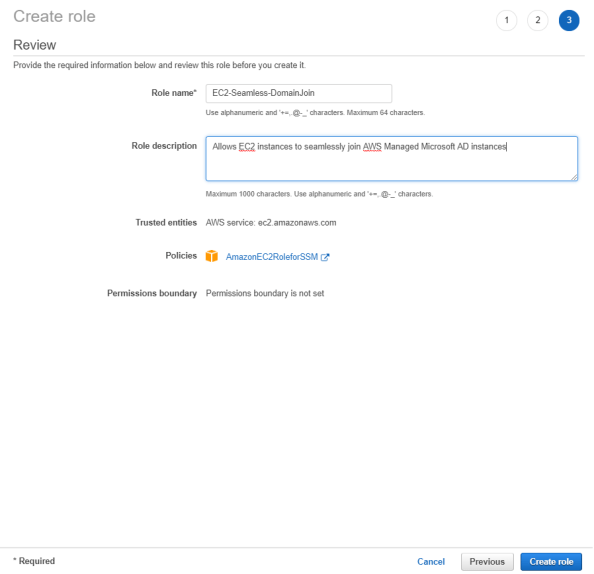

On the last page I’ll name the role, set a description, and select the Create role button. The role is then provisioned and available for use.


Navigating back to the Directory Services page, I can see that the geekintheweeds.com instance is up and running. This means we can now create some EC2 instances and seamlessly join them to the domain.


The EC2 instance creation is documented endless on the web, so I won’t waste time walking through it beyond showing the screenshot below which displays the options for seamless domain-join. The EC2 instance created will be named SERVER01.


After a few minutes the instance is ready to go. I start the Remote Desktop on my client machine and attempt a connection to the EC2 instance using the Admin user and credentials I set for the AD domain.

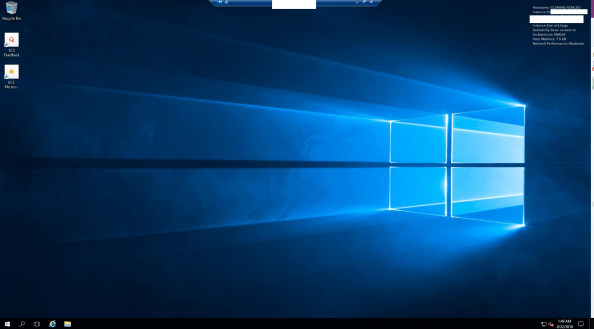

Low and behold I’m logged into the EC2 instance using my domain credentials!


As you can see setup of the service and EC2 instances is extremely simple and could made that much more simple if we tossed out the GUI and leveraged cloud formation templates to seamlessly spin up entire environments at a push of a button.

We covered a lot of content in this entry so I’ll close out here.  In the next entry I’ll examine the directory structure Amazon creates including the security principals and key permissions.

See you next post!



AWS Managed Microsoft AD Deep Dive Part 1 – Overview

AWS Managed Microsoft AD Deep Dive  Part 1 – Overview

Welcome back my fellow geeks!

Earlier this year I did a deep dive into Microsoft’s managed Active Directory service, Microsoft Azure Active Directory Domain Services (AAD DS).  I found was a service in its infancy and showing some promise, but very far from being an enterprise-ready service.  I thought it would be fun to look at Amazon’s (which I’ll refer to as Amazon Web Services (AWS) for the rest of the entries in this series) take on a managed Microsoft Active Directory (or as Microsoft is referring to it these days Windows Active Directory).

Unless your organization popped up in the last year or two and went the whole serverless route you are still managing operating systems that require centralized authentication, authorization, and configuration management.  You also more than likely have a ton of legacy/classic on-premises applications that require legacy protocols such as Kerberos and LDAP.  Your organization is likely using Windows Active Directory (Windows AD) to provide these capabilities along with Windows AD’s basic domain name system (DNS) service and centralized identity data store.

It’s unrealistic to assume you’re going to shed all those legacy applications prior to beginning your journey into the public cloud.  I mean heck, shedding the ownership of data centers alone can be a huge cost driver.  Organizations are then faced with the challenge of how to do Windows AD in the public cloud.  Is it best to extend an existing on-premises forest into the public cloud?  What about creating a resource forest with a trust?  Or maybe even a completely new forest with no trust?  Each of these options have positives and negatives that need to be evaluated against organizational requirements across the business, technical, and legal arenas.

Whatever choice you make, it means additional infrastructure in the form of more domain controllers.  Anyone who has managed Windows AD in an enterprise knows how much overhead managing domain controllers can introduce.  Let me clarify that by managing Windows AD, it does not mean opening Active Directory Users and Computers (ADUC) and creating user accounts and groups.  I’m talking about examining performance monitor AD counters and LDAP Debug logs to properly size domain controllers, configuring security controls to comply with PCI and HIPAA requirements or aligning with DISA STIGS, managing updates and patches, and troubleshooting the challenges those bring which requires extensive knowledge of how Active Directory works.  In this day an age IT staff need to be less focused on overhead such as this and more focused on working closely with its business units to drive and execute upon business strategy.  That folks is where managed services shine.

AWS offers an extensive catalog of managed services and Windows AD is no exception.  Included within the AWS Directory Services offerings there is a powerful offering named Amazon Web Services Directory Service for Microsoft Active Directory, or more succinctly AWS Managed Microsoft AD.  It provides all the wonderful capabilities of Windows AD without all of the operational overhead.  An interesting fact is that the service has been around since December 2015 in comparison to Microsoft’s AAD DS which only went into public preview at in 3rd Q 2017.  This head start has done AWS a lot of favors and in this engineer’s opinion, has established AWS Managed Microsoft AD as the superior managed Windows AD service over Microsoft’s AAD DS.  We’ll see why as the series progresses.

Over the course of this series I’ll be performing a similar analysis as I did in my series on Microsoft AAD DS.  I’ll also be examining the many additional capabilities AWS Managed Microsoft AD provides and demoing some of them in action.  My goal is that by the end of this series you understand the technical limitations that come with the significant business benefits of leveraging a managed service.

See you next post!

Deep Dive into Azure AD Domain Services – Part 3

Deep Dive into Azure AD Domain Services  – Part 3

Well folks, it’s time to wrap up this series on Azure Active Directory Domain Services (AAD DS).  In my first post I covered the basic configurations of the managed domain and in my second post took a look at how well Microsoft did in applying security best practices and complying with NIST standards.  In this post I’m going to briefly cover the LDAPS over the Internet capability, summarize some key findings, and list out some improvements I’d like to see made to the service.

One of the odd features Microsoft provides with the AAD DS service is the ability to expose the managed domain over LDAPS to the Internet.  I really am lost as to the use case that drove the feature.  LDAP is very much a legacy on-premises protocol that has no place being exposed to risks of the public Internet.  It’s the last thing that should the industry should be encouraging.  Just because you can, doesn’t mean you should.   Now let me step off the soap box and let’s take a look at the feature.

As I covered in my last post LDAPS is not natively enabled in the managed domain.  The feature must be configured and enabled through the Azure Portal.  The configuration consists of uploading the private key and certificate the service will use in the form of a PKCS12 file (*.PFX).  The certificate has a few requirements that are outlined in the instructions above.  After the certificate is validated, it takes about 10-15 minutes for the service to become available.  Beyond enabling the service within the VNet, you additionally have the option to expose the LDAPS endpoint to the Internet.


Microsoft provides instructions on how to restrict access to the endpoint to trusted IPs via a network security group (NSG) because yeah, exposing an LDAP endpoint to the Internet is just a tad risky.  To lock it down you simply associate an NSG with the subnet AAD DS is serving.  Once that is done enable the service via the option in the image above and wait about 10 minutes.  After the service is up, register a external DNS record for the service that points to the IP address noted under the properties section of the AADS blade and you’re good to go.

For my testing purposes, I locked the external LDAPS endpoint down to the public IP address my Azure VM was SNATed to.  After that I created an entry in the host file of the VM that matched the external DNS name I gave the service (whyldap.geekintheweeds.com) to the public IP address of the LDAPS endpoint in order to bypass the split-brain DNS challenge.  Initiating a connection from LDP.EXE was a success.


Now that we know the service is running, let’s check out what the protocol support and cipher suite looks like.


Again we see the use of deprecated cipher suites. Here the risk is that much greater since a small mistake with an NSG could expose this endpoint directly to the Internet.  If you’re going to use this feature, please just don’t.  If you’re really determined to, don’t screw up your NSGs.

This series was probably one of the more enjoyable series I’ve done since I knew very little about the AAD DS offering. There were a few key takeaways that are worth sharing:

  • The more objects in the directory, the more expensive the service.
  • Users and groups can be created directly in managed domain after a new organizational unit is created.
  • Password and lockout policy is insanely loose to the point where I can create an account with a three character password (just need to meet complexity requirements) and accounts never lockout.  The policy cannot be changed.
  • RC4 encryption ciphers are enabled and cannot be disabled.
  • NTLMv1 is enabled and cannot be disabled.
  • The service does not support smart-card enforced users.  Yes, that includes both the users synchronized from Azure AD as well as any users you create directly in the managed domain.  If I had to guess, it’s probably due to the fact that you’re not a Domain Admin so hence you can’t add to the NTAuth certificate store.
  • LDAPS is not enabled by default.
  • Schema extensions are not supported.
  • Account-Based Kerberos Delegation is not supported.
  • If you are syncing identities to Azure AD, you’ll also need to synchronize your passwords.
  • The managed domain is very much “out of the box” defaults.
  • Microsoft creates a “god” account which is a permanent member of every privileged group in the forest
  • Recovery of deleted objects created directly in the managed domain is not possible.  The rights have not been delegated to the AADC Administrator.
  • The service does not allow for Active Directory trusts
  • SIDHistory attribute of users and groups sourced from Azure AD is populated with Primary Group from on-premises domain

My verdict on AAD DS is it’s not a very useful service in its current state.  Beyond small organizations, organizations that have very little to no requirements on legacy infrastructure, organizations that don’t have strong security requirements, and dev/qa purposes I don’t see much of a use for it right now.  It comes off as a service in its infancy that has a lot of room to grow and mature.  Microsoft has gone a bit too far in the standardization/simplicity direction and needs to shift a bit in the opposite direction by allowing for more customization, especially in regards to security.

I’d really like to see Microsoft introduce the capabilities below.   All of them should  exposed via the resource blade in the Azure Portal if at all possible.  It would provide a singular administration point (which seems to be the strategy given the move of Azure AD and Intune to the Azure Portal) and would allow Microsoft to control how the options are enabled in the managed domain.  This means no more administrators blowing up their Active Directory forest because they accidentally shut off all the supported cipher suites for Kerberos.

  • Expose Domain Controller Event Logs to Azure Portal/Graph API and add support for AAD DS Power BI Dashboards
  • Support for Active Directory trusts
  • Out of the box provide a Red Forest model (get rid of that “god” account)
  • Option to disable risky cipher suites for both Kerberos and LDAPS
  • Option to harden the password and lockout policy
  • Option to disable NTLMv1
  • Option to turn on LDAP Debug Logging
  • Option to direct Domain Controller event logs to a SIEM
  • Option to restore deleted users and groups that were created directly in the managed domain.  If you’re allow creation, you need to allow for restoration.
  • Removal of Internet-accessible LDAPS endpoint feature or at least somehow incorporate the NSG lockdown feature directly into the AAD DS blade.

While the service has a lot of room for improvement the direction of a managed Windows AD offering is spot on.  In the year 2018, there is no reason Windows AD shouldn’t be offered as a managed service.  The direction Microsoft has gone by sourcing the identities and credentials from Azure AD is especially creative.  It’s a solid step in the direction of creating a singular centralized identity service that provides both legacy and modern protocols.  I’ll be watching this service closely as Microsoft builds upon it for the next few months.

Thanks and see you next post!

Deep Dive into Azure AD Domain Services – Part 1

Deep Dive into Azure AD Domain Services  – Part 1

Hi everyone.  In this series of posts I’ll be doing a deep dive into Microsoft’s Azure AD Domain Services (AAD DS).  AAD DS is Microsoft’s managed Windows Active Directory service offered in Microsoft Azure Infrastructure-as-a-Service intended to compete with similar offerings such as Amazon Web Services’s (AWS) Microsoft Active Directory.  Microsoft’s solution differs from other offerings in that it sources its user and group information from Azure Active Directory versus an on-premises Windows Active Directory or LDAP.

Like its competitors Microsoft realizes there are still a lot of organizations out there who are still very much attached to legacy on-premises protocols such as NTLM, Kerberos, and LDAP.  Not every organization (unfortunately) is ready or able to evolve its applications to consume SAML, Open ID Connect, OAuth, and Rest-Based APIs (yes COTS vendors I’m talking to you and your continued reliance on LDAP authentication in the year 2018).  If the service has to be there, it makes sense to consume a managed service so staff can focus less on maintaining legacy technology like Windows Active Directory and focus more on a modern Identity-as-a-Service (IDaaS), Software-as-a-Service (SaaS), and Platform-as-a-Service (Paas) solutions.

Sounds great right?  Sure, but how does it work?  Microsoft’s documentation does a reasonable job giving the high level details of the service so I encourage you to read through it at some point.  I won’t be covering information included in that documentation unless I notice a discrepancy or an area that could use more detail.  Instead, I’m going to focus on the areas which I feel are important to understand if you’re going to attempt to consume the service in the same way you would a traditional on-premises Windows Active Directory.

With that introduction, let’s dig in.

The first thing I did was to install the Remote Server Administration Tools (RSAT) for Active Directory Domain Services and Group Policy Management tools.  I used these tools to explore some of the configuration choices Microsoft made in the managed service.  I also installed Microsoft Network Monitor 3.4 to review packet captures  captured using the netsh.

After the tools were installed I started a persistent network capture using netsh using an elevated command prompt.  This is an incredibly useful feature of Windows when you need to debug issues that occur prior or during user or system logon.  I’ve used this for years to troubleshoot a number of Windows Active Directory issues including slow logons and failed logons.  The only downfall of this is you’re forced into using Microsoft Network Monitor or Microsoft Message Analyzer to review the packet captures it creates.  While Microsoft Message Analyzer is a sleek tool, the resources required to run it effectively are typically a non-starter for a lab or traditional work laptop so I tend to use Network Monitor.

entry1pic1

After the packet capture was started I went through the standard process of joining the machine to the domain and rebooting the computer.  After reboot, I logged in an account in the AAD DC Administrators Azure Active Directory group, started an elevated command prompt as the VM’s local administrator and stopped the packet capture.  This provided me with a capture of the domain join, initial computer authentication, and initial user authentication.

entry1pic2

While I know you’re as eager to dig into the packet capture as I am, I’ll cover that in a future post.  Instead I decided to break out the RSAT tools and poke around at configuration choices an administrator would normally make when building out a Windows Active Directory domain.

Let’s first open the tool everyone who touches Windows Active Directory is familiar with, Active Directory Users and Computers (ADUC).  The data layout (with Advanced Features option on) for organizational units (OUs) and containers looks very similar to what we’re used to seeing with the exception of the AADC Computers, AADC Users, AADDSDomainAdmin OUs, and AADDSDomainConfig container.  I’ll get into these containers in a minute.


If we right-click the domain node and go to properties we see that the domain and forest are running in Windows Server 2012 R2 domain and forest functional level with no trusts defined.  Examining the operating system tab of the two domain controllers in the Domain Controllers OU shows that both boxes run Windows Server 2012 R2.  Interesting that Microsoft chose not to use Windows Server 2016.


Navigating to the Security tab and clicking the Advanced button shows that the AAD DC Administrator group has only been granted the Create Organizational Unit objects permission while the AAD DC Service Accounts group has been granted Replicating Directory Changes.  As you can see from these permissions the base of the directory tree is very locked down.


Let me circle back to the OUs and Containers I talked about above.  The AADDC Computers and AADDC Users OUs are the default OUs Microsoft creates for you.  Newly joined machines are added to the AADDC Computers OU and users synchronized from the Azure AD tenant are placed in the AADDC Users OU.  As we saw from the permissions above, we could use an account in the AAD DC Administrators group to create additional OUs under the domain node to delegate control to another set of more restricted admins, for the purposes of controlling GPOs if security filtering doesn’t meet our requirements, or for creating additional service accounts or groups for the workloads we deploy in the environment.  The permissions within the default OUs are very limited.  In the AADDC Computer OU GPOs can be applied and computer objects can be added and removed.  In the AADC Users OU only GPOs can be applied which makes sense considering the user and group objects stored there are sourced from your authoritative Azure AD tenant.

The AADDSDomainAdmin OU contains a single security group named AADDS Service Administrators Group (pre-Windows 2000 name of AADDSDomAdmGroup).  The group contains a single member names dcaasadmin which is the renamed built-in Active Directory administrator account.  The group is nested into a number of highly privileged built-in Active Directory groups including Administrators, Domain Admins, Domain Users, Enterprise Admins, and Schema Admins.  I’m very uncomfortable with Microsoft’s choice to make a “god” group and even a “god” user of the built-in administrator.  This directly conflicts with security best practices for Active Directory which would see no account being a permanent member of these highly privileged groups or at the least divvying up the privileges among separate security principals.  I would have liked to see Microsoft leverage a Red Forest Red Forest  design here.  Hopefully we’ll see some improvements as the service matures.  I’m unsure as to the purpose of the OU and this group at this time.

entry1pic6

The AADDSDomainConfig container contains a single container object named SchemaUpdate.  I reviewed the attributes of both containers hoping to glean some idea of the purpose of the containers and the only thing I saw of notice was the revision attribute was set to 2.  Maybe Microsoft is tracking the schema of their standard managed domain image via this attribute?  In a future post in this series I’ll do a comparison of this managed domain’s schema with a fresh Windows Server 2012 R2 schema.


Opening Active Directory Sites and Services shows that Microsoft has chosen to leave the domain with a single site.  This design choice makes sense given that a limitation of AAD DS is that it can only serve a single region.  If that limitation is ever lifted, Microsoft will need to revisit this choice and perhaps include a site for each region.   Expanding the Default-First-Site-Name site and the Servers node shows the two domain controllers Microsoft is using to provide the Windows Active Directory service to the VNet.

entry1pic8

So the layout is simple, what about the group policy objects (GPO)?  Opening up the Group Policy Management Console displays five GPOs which are included in every managed domain.


The AADDC Users GPO is empty of settings while the AADC Computers GPO has a single Preference defined that adds the AAD DC Administrators group to the built-in Administrators group on any member servers added to the OU.  The Default Domain Controllers Policy (DDCP) GPO is your standard out of the box DDCP with nothing special set.  The Default Domain Policy (DDP) GPO on the other hand has a number of settings applied.  The password policy is interesting… I get that you have the option to source all the user accounts within your AAD DS domain from Azure AD, but Microsoft is still giving you the ability to create user accounts in the managed domain as I covered above which makes me uncomfortable with the default password policy.  Microsoft hasn’t delegated the ability to create Fine Grained Password Policies (FGPPs) either, which means you’re stuck with this very lax password policy.  Given the lack of technical enforcement, I’d recommend avoiding creating user accounts directly in the managed domain for any purpose until Microsoft delegates the ability to create FGPPs.  The remaining settings in the policy are standard out of the box DDP.


The GPO named Event Log GPO is linked to the Domain Controllers OU and executes a startup script named EventLogRetentionPolicy.PS1.  Being the nosy geek I am, I dug through SYSVOL to find the script.  The script is very simple in that it sets each event log to overwrite events over 31 days old.  It then verifies the results and prints the results to the console.  Event logs are an interesting beast in AAD DS.  An account in the AAD DC Administrators group doesn’t have the right to connect to the Event Logs on the DCs remotely and I haven’t come across any options to view those logs.  I don’t see any mention of them in the Microsoft documentation, so my assumption is you don’t get access to them at this time.  I have to imagine this is a show stopper for some organizations considering the critical importance of Domain Controller logs.  If anyone knows how to access these logs, please let me know.  I’d like to see Microsoft incorporate an option to send the logs to a syslog agent via a configuration option in the Azure AD Domain Services blade in the Azure Portal.

I’m going to stop here today.  In my next post I’ll do some poking around by running a port scan against the managed domain controllers to see what network flows are open, enable LDAPS to see what the SSL/TLS landscape looks like, and examine authentication protocols and algorithms supported (NTLMv1,v2, Kerberos DES, etc).  Thanks for reading!
