The Evolution of AD RMS to Azure Information Protection – Part 1

The Evolution of AD RMS to Azure Information Protection – Part 1

Collaboration.  It’s a term I hear at least a few times a day when speaking to my user base.  The ability to seamlessly collaborate with team members, across the organization, with trusted partners, and with customers is a must.  It’s a driving force between much of the evolution of software-as-a-service collaboration offerings such as Office 365.  While the industry is evolving to make collaboration easier than ever, it’s also introducing significant challenges for organizations to protect and control their data.

In a recent post I talked about Microsoft’s entry into the cloud access security broker (CASB) market with Cloud App Security (CAS) and its capability to provide auditing and alerting on activities performed in Amazon Web Services (AWS).  Microsoft refers to this collection of features as the Investigate capability of CAS.  Before I cover an example of the Control features in action, I want to talk about the product that works behind the scenes to provide CAS with many of the Control features.

That product is Azure Information Protection (AIP) and it provides the capability to classify, label, and protect files and email.  The protection piece is provided by another Microsoft product, Azure Active Directory Rights Management Services (Azure RMS).  Beyond just encrypting a file or email, Azure RMS can control what a user can do with a file such as preventing a user from printing a document or forwarding an email.  The best part?  The protection goes with the data even when it leaves your security boundary.

For those of you that have read my blog you can see that I am a huge fanboy of the predecessor to Azure RMS, Active Directory Rights Management Services (AD RMS, previously Rights Management Service or RMS for you super nerds).  AD RMS has been a role available in Microsoft Windows Server since Windows Server 2003.  It was a product well ahead of its time that unfortunately never really caught on.  Given my love for AD RMS, I thought it would be really fun to do a series looking at how AIP has evolved from AD RMS.   It’s a dramatic shift from a rather unknown product to a product that provides capabilities that will be as standard and as necessary as Antivirus was to the on-premises world.

I built a pretty robust lab environment (two actually) such that I could demonstrate the different ways the solutions work as well as demonstrate what it looks to migrate from AD RMS to AIP.  Given the complexity of the lab environment,  I’m going to take this post to cover what I put together.

The layout looks like this:




On the modern end I have an Azure AD tenant with the custom domain assigned of geekintheweeds.com.  Attached to the tenant I have some Office 365 E5 and Enterprise Mobility + Security E5 trial licenses  For the legacy end I have two separate labs setup in Azure each within its own resource group.  Lab number one contains three virtual machines (VMs) that run a series of services included Active Directory Domain Services (AD DS), Active Directory Certificate Services (AD CS), AD RMS, and Microsoft SQL Server Express.  Lab number two contains four VMs that run the same set as services as Lab 1 in addition to Active Directory Federation Services (AD FS) and Azure Active Directory Connect (AADC).  The virtual network (vnet) within each resource group has been peered and both resource groups contain a virtual gateway which has been configured with a site-to-site virtual private network (VPN) back to my home Hyper-V environment.  In the Hyper V environment I have two workstations.

Lab 1 is my “legacy” environment and consists of servers running Windows 2008 R2 and Windows Server 2012 R2 (AD RMS hasn’t changed in any meaningful manner since 2008 R2) and a client running Windows 7 Pro running Office 2013.  The DNS namespace for its Active Directory forest is JOG.LOCAL.  Lab 2 is my “modern” environment and consists of servers running Windows Server 2016 and a Windows 10 client running Office 2016 .  It uses a DNS namespace of GEEKINTHEWEEDS.COM for its Active Directory forest and is synchronized with the Azure AD tenant I mentioned above.  AD FS provides SSO to Office 365 for Geek in The Weeds users.

For AD RMS configuration, both environments will initially use Cryptographic Mode 1 and will have a trusted user domain (TUD).  SQL Server Express will host the AD RMS database and I will store the cluster key locally within the database.  The use of a TUD will make the configuration a bit more interesting for reasons you’ll see in a future post.

Got all that?

In my next post I’ll cover how the architecture changes when migrating from AD RMS to Azure Information Protection.

Deep Dive into Azure AD Domain Services – Part 2

Deep Dive into Azure AD Domain Services  – Part 2

Welcome back to part 2 of my series on Microsoft’s managed services offering of Azure Active Directory Domain Services (AAD DS).  In my first post I covered so some of the basic configuration settings of the a default service instance.  In this post I’m going to dig a bit deeper and look at network flows, what type of secure tunnels are available for LDAPS, and examine the authentication protocols and supporting cipher suites are configured for the service.

To perform these tests I leveraged a few different tools.  For a port scanner I used Zenmap.  To examine the protocols and cipher suites supported by the LDAPS service I used a custom openssl binary running on an Ubuntu VM in Azure.  For examination of the authentication protocol support I used Samba’s smbclient running on the Ubuntu VM in combination with WinSCP for file transfer, tcpdump for packet capture, and WireShark for packet analysis.

Let’s start off with examining the open ports since it takes the least amount of effort.  To do that I start up Zenmap and set the target to one of the domain controllers (DCs) IP addresses, choose the intense profile (why not?), and hit scan.  Once the scan is complete the results are displayed.

2aad1

Navigating to the Ports / Hosts tab displays the open ports. All but one of them are straight out of the standard required ports you’d see open on a Windows Server functioning as an Active Directory DC.  An opened port 443 deserves more investigation.


Let’s start with the obvious and attempt to hit the IP over an HTTPS connection but no luck there.


Let’s break out Fiddler and hit it again.  If we look at the first session where we build the secure tunnel to the website we see some of the details for the certificate being used to secure the session.  Opening the TextView tab of the response shows a Subject of CN=DCaaS Fleet Dc Identity Cert – 0593c62a-e713-4e56-a1be-0ef78f1a2793.  Domain Controller-as-a-Service, I like it Microsoft.  Additionally Fiddler identifies the web platform as the Microsoft HTTP Server API (HTTP.SYS).  Microsoft has been doing a lot more that API since it’s much more lightweight than IIS.  I wanted to take a closer look at the certificate so I opened the website in Dev mode in Chrome and exported it.  The EKUs are normal for a standard use certificate and it’s self-signed and untrusted on my system.  The fact that the certificate is untrusted and Microsoft isn’t rolling it out to domain-joined members tells me whatever service is running on the port isn’t for my consumption.

So what’s running on that port?  I have no idea.  The use of the HTTP Server API and a self-signed certificate with a subject specific to the managed domain service tells me it’s providing access to some type of internal management service Microsoft is using to orchestrate the managed domain controllers.  If anyone has more info on this, I’d love to hear it.


Let’s now take a look at how Microsoft did at securing LDAPS connectivity to the managed domain.  LDAPS is not enabled by default in the managed domain and needs to be configured through the Azure AD Domain Services blade per these instructions.  Oddly enough Microsoft provides an option to expose LDAPS over the Internet.  Why any sane human being would ever do this, I don’t know but we’ll cover that in a later post.

I wanted to test SSLv3 and up and I didn’t want to spend time manipulating registry entries on a Windows client so I decided to spin up an Ubuntu Server 17.10 VM in Azure.  While the Ubuntu VM was spinning up, I created a certificate to be used for LDAPS using the PowerShell command referenced in the Microsoft article and enabled LDAPS through the Azure AD Domain Services resource in the Azure Portal.  I did not enable LDAPS for the Internet for these initial tests.

After adding the certificate used by LDAPS to the trusted certificate store on the Windows Server, I opened LDP.EXE and tried establishing LDAPS connection over port 636 and we get a successful connection.


Once I verified the managed domain was now supporting LDAPS connections I switched over to the Ubuntu box via an SSH session.  Ubuntu removed SSLv3 support in the OpenSSL binary that comes pre-packaged with Ubuntu so to test it I needed to build another OpenSSL binary.  Thankfully some kind soul out there on the Interwebz documented how to do exactly that without overwriting the existing version.  Before I could build a new binary I had to add re-install the Make package and add the Gnu Compiler Collection (GCC) package using the two commands below.

  • sudo apt-get install –reinstall make
  • sudo apt-get install gcc

After the two packages were installed I built the new binary using the instructions in the link, tested the command, and validated the binary now includes SSLv3.

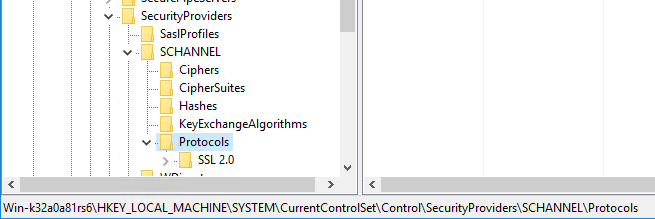

After Poodle hit the news back in 2014, Microsoft along with the rest of the tech industry advised SSLv3 be disabled.  Thankfully this basic well known vulnerability has been covered and SSLv3 is disabled.


SSLv3 is disabled, but what about TLS 1.0, 1.1, and 1.2?  How about the cipher suites?  Are they aligned with NIST guidance?  To test that I used a tool named TestSSLServer by Thomas Pornin.  It’s a simple command line tool which makes cycling through the available cipher suites quick and easy.


The options I chose perform the following actions:

  • -all -> Perform an “exhaustive” search across cipher suites
  • -t 1 -> Space out the connections by one second
  • -min tlsv1 -> Start with TLSv1

The command produces the output below.

TLSv1.0:
server selection: enforce server preferences
3f- (key: RSA) ECDHE_RSA_WITH_AES_256_CBC_SHA
3f- (key: RSA) ECDHE_RSA_WITH_AES_128_CBC_SHA
3f- (key: RSA) DHE_RSA_WITH_AES_256_CBC_SHA
3f- (key: RSA) DHE_RSA_WITH_AES_128_CBC_SHA
3– (key: RSA) RSA_WITH_AES_256_CBC_SHA
3– (key: RSA) RSA_WITH_AES_128_CBC_SHA
3– (key: RSA) RSA_WITH_3DES_EDE_CBC_SHA
3– (key: RSA) RSA_WITH_RC4_128_SHA
3– (key: RSA) RSA_WITH_RC4_128_MD5
TLSv1.1: idem
TLSv1.2:
server selection: enforce server preferences
3f- (key: RSA) ECDHE_RSA_WITH_AES_256_CBC_SHA384
3f- (key: RSA) ECDHE_RSA_WITH_AES_128_CBC_SHA256
3f- (key: RSA) ECDHE_RSA_WITH_AES_256_CBC_SHA
3f- (key: RSA) ECDHE_RSA_WITH_AES_128_CBC_SHA
3f- (key: RSA) DHE_RSA_WITH_AES_256_GCM_SHA384
3f- (key: RSA) DHE_RSA_WITH_AES_128_GCM_SHA256
3f- (key: RSA) DHE_RSA_WITH_AES_256_CBC_SHA
3f- (key: RSA) DHE_RSA_WITH_AES_128_CBC_SHA
3– (key: RSA) RSA_WITH_AES_256_GCM_SHA384
3– (key: RSA) RSA_WITH_AES_128_GCM_SHA256
3– (key: RSA) RSA_WITH_AES_256_CBC_SHA256
3– (key: RSA) RSA_WITH_AES_128_CBC_SHA256
3– (key: RSA) RSA_WITH_AES_256_CBC_SHA
3– (key: RSA) RSA_WITH_AES_128_CBC_SHA
3– (key: RSA) RSA_WITH_3DES_EDE_CBC_SHA
3– (key: RSA) RSA_WITH_RC4_128_SHA
3– (key: RSA) RSA_WITH_RC4_128_MD5

As can be seen from the bolded output above, Microsoft is still supporting the RC4 cipher suites in the managed domain. RC4 has been known to be a vulnerable algorithm for years now and it’s disappointing to see it still supported especially since I haven’t seen any options available to disable within the managed domain. While 3DES still has a fair amount of usage, there have been documented vulnerabilities and NIST plans to disallow it for TLS in the near future. While commercial customers may be more willing to deal with the continued use of these algorithms, government entities will not.

Let’s now jump over to Kerberos and check out what cipher suites are supported by the managed DC. For that we pull up ADUC and check the msDS-SupportedEncryptionTypes attribute of the DC’s computer object. The attribute is set to a value of 28, which is the default for Windows Server 2012 R2 DCs. In ADUC we can see that this value translates to support of the following algorithms:

• RC4_HMAC_MD5
• AES128_CTS_HMAC_SHA1
• AES256_CTS_HMAC_SHA1_96

Again we see more support for RC4 which should be a big no no in the year 2018. This is a risk that orgs using AAD DS will need to live with unless Microsoft adds some options to harden the managed DCs.

Last but not least I was curious if Microsoft had support for NTLMv1. By default Windows Server 2012 R2 supports NTLMv1 due to requirements for backwards compatibility. Microsoft has long recommended disabling NTLMv1 due to the documented issues with the security of the protocol. So has Microsoft followed their own advice in the AAD DS environment?

To check this I’m going use Samba’s smbclient package on the Ubuntu VM. I’ll use smbclient to connect to the DC’s share from the Ubuntu box using the NTLM protocol. Samba has enforced the use NTLMV2 in smbclient by default so I needed to make some modifications to the global section of the smb.conf file by adding client ntlmv2 auth = no. This option disables NTLMv2 on smbclient and will force it to use NTLMv1.


After saving the changes to smb.conf I exit back to the terminal and try opening a connection with smbclient. The options I used do the following:

  • -L -> List the shares on my DC’s IP address
  • -U -> My domain user name
  • -m -> Use the SMB2 protocol

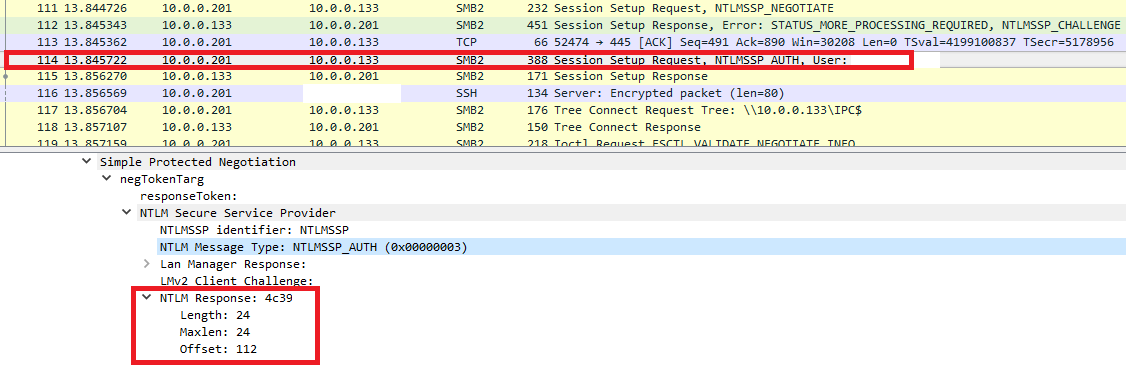

While I ran the command I also did a packet capture using tcpdump which I moved over to my Windows box using WinSCP.  I then opened the capture with WireShark and navigated to the packet containing the Session Setup Request.  In the parsed capture we don’t see an NTLMv2 Response which means NTLMv1 was used to authenticate to the domain controller indicating NTLMv1 is supported by the managed domain controllers.


Based upon what I’ve observed from poking around and running these tests I’m fairly confident Microsoft is using a very out-of-the-box configuration for the managed Windows Active Directory domain.  There doesn’t seem to be much of an attempt to harden the domain against some of the older and well known risks.  I don’t anticipate this offering being very appealing to organizations with strong security requirements.  Microsoft should look to offer some hardening options that would be configurable through the Azure Portal.  Those hardening options are going to need to include some type of access to the logs like I mentioned in my last post.  Anyone who has tried to rid their network of insecure cipher suites or older authentication protocols knows the importance of access to the domain controller logs to the success of that type of effort.

My next post will be the final post in this series.  I’ll cover the option Microsoft provides to expose LDAPS to the Internet (WHY OH WHY WOULD YOU DO THAT?), summarize my findings, and mention a few other interesting things I came across during the study for this series.

Thanks!

Deep Dive into Azure AD Domain Services – Part 1

Deep Dive into Azure AD Domain Services  – Part 1

Hi everyone.  In this series of posts I’ll be doing a deep dive into Microsoft’s Azure AD Domain Services (AAD DS).  AAD DS is Microsoft’s managed Windows Active Directory service offered in Microsoft Azure Infrastructure-as-a-Service intended to compete with similar offerings such as Amazon Web Services’s (AWS) Microsoft Active Directory.  Microsoft’s solution differs from other offerings in that it sources its user and group information from Azure Active Directory versus an on-premises Windows Active Directory or LDAP.

Like its competitors Microsoft realizes there are still a lot of organizations out there who are still very much attached to legacy on-premises protocols such as NTLM, Kerberos, and LDAP.  Not every organization (unfortunately) is ready or able to evolve its applications to consume SAML, Open ID Connect, OAuth, and Rest-Based APIs (yes COTS vendors I’m talking to you and your continued reliance on LDAP authentication in the year 2018).  If the service has to be there, it makes sense to consume a managed service so staff can focus less on maintaining legacy technology like Windows Active Directory and focus more on a modern Identity-as-a-Service (IDaaS), Software-as-a-Service (SaaS), and Platform-as-a-Service (Paas) solutions.

Sounds great right?  Sure, but how does it work?  Microsoft’s documentation does a reasonable job giving the high level details of the service so I encourage you to read through it at some point.  I won’t be covering information included in that documentation unless I notice a discrepancy or an area that could use more detail.  Instead, I’m going to focus on the areas which I feel are important to understand if you’re going to attempt to consume the service in the same way you would a traditional on-premises Windows Active Directory.

With that introduction, let’s dig in.

The first thing I did was to install the Remote Server Administration Tools (RSAT) for Active Directory Domain Services and Group Policy Management tools.  I used these tools to explore some of the configuration choices Microsoft made in the managed service.  I also installed Microsoft Network Monitor 3.4 to review packet captures  captured using the netsh.

After the tools were installed I started a persistent network capture using netsh using an elevated command prompt.  This is an incredibly useful feature of Windows when you need to debug issues that occur prior or during user or system logon.  I’ve used this for years to troubleshoot a number of Windows Active Directory issues including slow logons and failed logons.  The only downfall of this is you’re forced into using Microsoft Network Monitor or Microsoft Message Analyzer to review the packet captures it creates.  While Microsoft Message Analyzer is a sleek tool, the resources required to run it effectively are typically a non-starter for a lab or traditional work laptop so I tend to use Network Monitor.

entry1pic1

After the packet capture was started I went through the standard process of joining the machine to the domain and rebooting the computer.  After reboot, I logged in an account in the AAD DC Administrators Azure Active Directory group, started an elevated command prompt as the VM’s local administrator and stopped the packet capture.  This provided me with a capture of the domain join, initial computer authentication, and initial user authentication.

entry1pic2

While I know you’re as eager to dig into the packet capture as I am, I’ll cover that in a future post.  Instead I decided to break out the RSAT tools and poke around at configuration choices an administrator would normally make when building out a Windows Active Directory domain.

Let’s first open the tool everyone who touches Windows Active Directory is familiar with, Active Directory Users and Computers (ADUC).  The data layout (with Advanced Features option on) for organizational units (OUs) and containers looks very similar to what we’re used to seeing with the exception of the AADC Computers, AADC Users, AADDSDomainAdmin OUs, and AADDSDomainConfig container.  I’ll get into these containers in a minute.


If we right-click the domain node and go to properties we see that the domain and forest are running in Windows Server 2012 R2 domain and forest functional level with no trusts defined.  Examining the operating system tab of the two domain controllers in the Domain Controllers OU shows that both boxes run Windows Server 2012 R2.  Interesting that Microsoft chose not to use Windows Server 2016.


Navigating to the Security tab and clicking the Advanced button shows that the AAD DC Administrator group has only been granted the Create Organizational Unit objects permission while the AAD DC Service Accounts group has been granted Replicating Directory Changes.  As you can see from these permissions the base of the directory tree is very locked down.


Let me circle back to the OUs and Containers I talked about above.  The AADDC Computers and AADDC Users OUs are the default OUs Microsoft creates for you.  Newly joined machines are added to the AADDC Computers OU and users synchronized from the Azure AD tenant are placed in the AADDC Users OU.  As we saw from the permissions above, we could use an account in the AAD DC Administrators group to create additional OUs under the domain node to delegate control to another set of more restricted admins, for the purposes of controlling GPOs if security filtering doesn’t meet our requirements, or for creating additional service accounts or groups for the workloads we deploy in the environment.  The permissions within the default OUs are very limited.  In the AADDC Computer OU GPOs can be applied and computer objects can be added and removed.  In the AADC Users OU only GPOs can be applied which makes sense considering the user and group objects stored there are sourced from your authoritative Azure AD tenant.

The AADDSDomainAdmin OU contains a single security group named AADDS Service Administrators Group (pre-Windows 2000 name of AADDSDomAdmGroup).  The group contains a single member names dcaasadmin which is the renamed built-in Active Directory administrator account.  The group is nested into a number of highly privileged built-in Active Directory groups including Administrators, Domain Admins, Domain Users, Enterprise Admins, and Schema Admins.  I’m very uncomfortable with Microsoft’s choice to make a “god” group and even a “god” user of the built-in administrator.  This directly conflicts with security best practices for Active Directory which would see no account being a permanent member of these highly privileged groups or at the least divvying up the privileges among separate security principals.  I would have liked to see Microsoft leverage a Red Forest Red Forest  design here.  Hopefully we’ll see some improvements as the service matures.  I’m unsure as to the purpose of the OU and this group at this time.

entry1pic6

The AADDSDomainConfig container contains a single container object named SchemaUpdate.  I reviewed the attributes of both containers hoping to glean some idea of the purpose of the containers and the only thing I saw of notice was the revision attribute was set to 2.  Maybe Microsoft is tracking the schema of their standard managed domain image via this attribute?  In a future post in this series I’ll do a comparison of this managed domain’s schema with a fresh Windows Server 2012 R2 schema.


Opening Active Directory Sites and Services shows that Microsoft has chosen to leave the domain with a single site.  This design choice makes sense given that a limitation of AAD DS is that it can only serve a single region.  If that limitation is ever lifted, Microsoft will need to revisit this choice and perhaps include a site for each region.   Expanding the Default-First-Site-Name site and the Servers node shows the two domain controllers Microsoft is using to provide the Windows Active Directory service to the VNet.

entry1pic8

So the layout is simple, what about the group policy objects (GPO)?  Opening up the Group Policy Management Console displays five GPOs which are included in every managed domain.


The AADDC Users GPO is empty of settings while the AADC Computers GPO has a single Preference defined that adds the AAD DC Administrators group to the built-in Administrators group on any member servers added to the OU.  The Default Domain Controllers Policy (DDCP) GPO is your standard out of the box DDCP with nothing special set.  The Default Domain Policy (DDP) GPO on the other hand has a number of settings applied.  The password policy is interesting… I get that you have the option to source all the user accounts within your AAD DS domain from Azure AD, but Microsoft is still giving you the ability to create user accounts in the managed domain as I covered above which makes me uncomfortable with the default password policy.  Microsoft hasn’t delegated the ability to create Fine Grained Password Policies (FGPPs) either, which means you’re stuck with this very lax password policy.  Given the lack of technical enforcement, I’d recommend avoiding creating user accounts directly in the managed domain for any purpose until Microsoft delegates the ability to create FGPPs.  The remaining settings in the policy are standard out of the box DDP.


The GPO named Event Log GPO is linked to the Domain Controllers OU and executes a startup script named EventLogRetentionPolicy.PS1.  Being the nosy geek I am, I dug through SYSVOL to find the script.  The script is very simple in that it sets each event log to overwrite events over 31 days old.  It then verifies the results and prints the results to the console.  Event logs are an interesting beast in AAD DS.  An account in the AAD DC Administrators group doesn’t have the right to connect to the Event Logs on the DCs remotely and I haven’t come across any options to view those logs.  I don’t see any mention of them in the Microsoft documentation, so my assumption is you don’t get access to them at this time.  I have to imagine this is a show stopper for some organizations considering the critical importance of Domain Controller logs.  If anyone knows how to access these logs, please let me know.  I’d like to see Microsoft incorporate an option to send the logs to a syslog agent via a configuration option in the Azure AD Domain Services blade in the Azure Portal.

I’m going to stop here today.  In my next post I’ll do some poking around by running a port scan against the managed domain controllers to see what network flows are open, enable LDAPS to see what the SSL/TLS landscape looks like, and examine authentication protocols and algorithms supported (NTLMv1,v2, Kerberos DES, etc).  Thanks for reading!

Deep dive into AD FS and MS WAP – Overview

Hi everyone,

If you’ve followed my blog at all, you will notice I spend a fair amount of my time writing about the products and technologies powering the integration of on-premises and cloud solutions.  The industry refers to that integration using a variety of buzzwords from hybrid cloud to software defined data center/storage/networking/etc.  I prefer a more simple definition of legacy solutions versus modern solutions.

So what do I mean by a modern solution?  I’m speaking of solutions with the following most if not all of these characteristics:

  • Customer maintains only the layers of the technology that directly present business value
  • Short time to market for new features and features are introduced in a “toggle on and toggle off” manner
  • Supports modern authentication, authorization, and identity management standards and specifications such as Open ID Connect, OAuth, SAML, and SCIM
  • On-demand scaling
  • Provides a robust web-based API
  • Customer data can exist on-premises or off-premises

Since I love the identity realm, I’m going to focus on the bullet regarding modern authentication, authorization, and identity management.  For this series of posts I’m going to look at how Microsoft’s Active Directory Federation Service (AD FS)  and Microsoft’s Web Application Proxy (WAP) can be used to help facilitate the use of modern authentication and authorization.

So where does AD FS and the WAP come in?  AD FS provides us with a security token service producing the logical security tokens used in SAML, OAuth, and Open ID Connect.  Why do we care about the MS WAP?  The WAP acts a reverse proxy giving us the ability to securely expose AD FS to untrusted networks (like the Internet) so that devices outside our traditional firewalled security boundary can leverage our modern authentication and authorization solution.

Some real life business cases that can be solved with this solution are:

  1. Single sign-on (SSO) experience to a SaaS application such as SharePoint online from both an Active Directory domain-joined endpoint or a non-domain joined endpoint such as a mobile phone.
  2. Limit the number of passwords a user needs to remember to access both internal and cloud applications.
  3. Provide authentication or authorization for modernized internal applications for endpoints outside the traditional firewalled security boundary.
  4. Authentication and authorization of devices prior to accessing an internal or cloud application.

As we can see from the above, there are some great benefits around SSO, limiting user credentials to improve security and user experience, and taking our authorization to the next step by doing contextual-based authorization (device information, user location, etc) versus relying upon just Active Directory group.

Microsoft does a relatively decent job describing how to design and implement your AD FS and WAP rollout, so I’m not going to cover much of that in this series.  Instead I’m going to focus on the “behind the scenes” conversations that occur with endpoints, WAP, AD FS, AD DS, and Azure AD. Before I begin delving into the weeds of the product, I’m going to spend this post giving an overview of what my lab looks like.

I recently put together a more permanent lab consisting of a mixture of on-premise VMs running on HyperV and Azure resources.  I manage to stay well within my $150.00 MSDN balance by keeping a majority of the VMs deallocated.   The layout of the lab is diagramed below.

HomeLab



On-premises I am running a small collection of Windows Server 2016 machines within HyperV running on top of Windows Server 2016.  I’m using a standard setup of an AD DS, AD CS, AADC, AD FS, and IIS/MS SQL server.  Running in Azure I have a single VNet with three subnets each separated by a network security group.  My core infrastructure of an AD DS, IIS/MS SQL, and AD FS server exist in my Intranet subnet with my DMZ subnet containing a single WAP.

The Active Directory configuration consists of a single Active Directory forest with an FQDN of journeyofthegeek.local.  The domain has been configured with an explicit UPN of journeyofthegeek.com which is assigned as the UPN suffix for all users synchronized to Azure Active Directory.  The domain is running in Windows Server 2016 domain and forest functional level.  The on-premises domain controller holds all FSMO roles and acts as the DC for the Active Directory site representing the on-premises physical location.  The domain controller in Azure acts as the sole DC for the Active Directory site representing Azure.  Both DCs host the split-brain DNS zone for journeyofthegeek.com.

The on-premises domain controller also runs Active Directory Certificate Services.  The CA is an enterprise CA that is used to distribute certificates to security principals in the environment.  I’ve removed the CDP from the certificate templates issued by the CA to eliminate complications with the CRL revocation checking.

The AD FS servers are members of an AD FS farm named sts.journeyofthegeek.com and use a MS SQL Server 2016 backend for storage of configuration information.  The SQL Server on-premises hosts the SQL instance that the AD FS users are using to store configuration information.

Azure Active Directory Connect is co-located on the AD FS server and uses the same SQL server as the AD FS uses.  It has been integrated with a lab Azure Active Directory tenant I use which has a few licenses of Office 365 Business Essentials.  The objectGUID attribute is used as the immutable ID and the Azure Active Directory tenant has the DNS namespaces of journeyofthegeek.onmicrosoft.com and journeyofthegeek.com associated with it.

The IIS server running in Azure runs a simple .NET application (https://blogs.technet.microsoft.com/tangent_thoughts/2015/02/20/install-and-configure-a-simple-net-4-5-sample-federated-application-samapp/) that is used for claims-based authentication.  I’ll be using that application for demonstrations with the Web Application Proxy and have used it in the past to demonstrate functionality of the Azure Application Proxy.

For the demonstrations throughout these series I’ll be using the following tools:

In my next post I’ll do a deep dive into what happens behind the scenes during the registration of the Web Application Proxy with an AD FS farm.  See you then!



Helpful hints for resolving AD FS problems – Part 1

Hi everyone.

Over the past week I’ve been building a lab for an upcoming deep dive into Microsoft’s Web Application Proxy.  During the course of building the lab I ran into a few interesting issues with AD FS and the Web Application Proxy that I wanted to cover.  Some were similar to issues I’ve run into in production environments and some were new to me.

These issues are interesting in that there aren’t any obvious indicators of the problem in any of the typical logs.  Two out of three required some trial and error to determine root cause, while the third drove me quite insane for a good two weeks before getting an answer from an “official” source.  Over the course of this series of blogs I’ll cover each issue in detail with the hopes that it will help others troubleshoot these issues in the future.

Issue 1: AD FS Certificate authentication fails

I’m going to start with the problem that took me the longest to resolve and eventually required getting the answer directly from an official source.

For those of you that are unfamiliar, AD FS provides the capability to offer multi-factor authentication methods both native and third-party.  Out of the box, it supports certificate-based authentication as an option for a multi-factor or “step-up” authentication mechanism.

A few months back I wanted to take advantage of the certificate authentication feature to provide a two-factor authentication solution for applications integrated with AD FS.  Like a good engineer I did my Googling, read the Microsoft articles and various blogs out there to understand how the feature worked and what the requirements were.  I built a lab in Azure, setup an AD FS server, and ensured port 49443 was open in addition to the the typical ports required by AD FS.  I created my instance of AD CS, issued a user certificate containing the user’s UPN in the subject alternate name field, and setup a sample SAML app and configured it to require Certificate authentication.

How easy it all sounds right?  I navigated to the sample application and got the screen below…

Screen Shot 2017-06-04 at 9.29.35 PM

and I waited….  and waited…. and waited…  Ummm, what went wrong?  Well surely the AD FS log will tell me what happened.

Screen Shot 2017-06-04 at 9.34.03 PM.png

Well isn’t that odd.  No errors or warnings in the AD FS Admin log.  A quick check of the Application and System logs showed no errors either.  Maybe the AD FS Debug log would show me something?  I flipped on the log and attempted another authentication.

Screen Shot 2017-06-04 at 9.38.07 PM

Nothing as well?  Maybe the server can’t query the revocation lists designated in the certificates CDP?  Nope, not that either the server can successfully contact the CDP endpoints.  At this point I began to get quite frustrated and attempted packet captures, Fiddler captures, and anything and everything I could think of.  Nothing I tried revealed the answer.

I finally gave in (which I can tell you is incredibly challenging for me) and reached out to an “official” source.  We chatted back and forth and went through much of the same steps as outlined above to ensure I didn’t miss anything.  However, we ran into another dead end.  He then reached out to some other engineers he knew and eventually we got a hit.  We were told to check to see if there were any intermediary certificates stored within the trusted root certificate authorities store.  Sounds like an odd circumstance, but sure why not.

Upon opening up the certificates MMC, opening the machine store, and exploring the trusted root certificate authorities store low and behold I see an intermediary certificate within the store.  I deleted the certificate, restarted the AD FS server and attempted another login to the sample claim application and hit the screen below.

Screen Shot 2017-06-04 at 9.50.16 PM

Boom, I’m finally receiving the certificate prompt.  Clicking the OK button brings about the successful login below.

Screen Shot 2017-06-04 at 9.51.23 PM

So what was the issue?  Apparently AD FS certificate authentication fails without generating an error in any logical location (maybe nowhere at all?) if there is an intermediary certificate in the trusted root certificate authority machine store.  I’ve verified this is an issue in both AD FS 2012 R2 and AD FS 2016.  Now why this occurs is unknown to me.  It could be the underlining HTTPS.SYS driver that pukes and doesn’t report any errors to the event logs.  I didn’t get a straight answer as to why this occurs, just that it will due to some type of integrity check on the machine certificate store.  Odd right?

That completes the rundown of the first of three problems I’ll be outlining in this series of blogs.  Hopefully this helps save someone else some time and aggravation.

See you next post!





Azure AD Pass-through Authentication – How does it work? Part 2

Welcome back. Today I will be wrapping up my deep dive into Azure AD Pass-through authentication. If you haven’t already, take a read through part 1 for a background into the feature. Now let’s get to the good stuff.

I used a variety of tools to dig into the feature. Many of you will be familiar with the Sysinternals tools, WireShark, and Fiddler. The Rohitab API Monitor. This tool is extremely fun if you enjoy digging into the weeds of the libraries a process uses, the methods it calls, and the inputs and outputs. It’s a bit buggy, but check it out and give it a go.

As per usual, I built up a small lab in Azure with two Windows Server 2016 servers, one running AD DS and one running Azure AD Connect. When I installed Azure AD Connect I configured it to use pass-through authentication and to not synchronize the password. The selection of this option will the MS Azure Active Directory Application Proxy. A client certificate will also be issued to the server and is stored in the Computer Certificate store.

In order to capture the conversations and the API calls from the MS Azure Active Directory Application Proxy (ApplicationProxyConnectorService.exe) I set the service to run as SYSTEM. I then used PSEXEC to start both Fiddler and the API Monitor as SYSTEM as well. Keep in mind there is mutual authentication occurring during some of these steps between the ApplicationProxyConnectorService.exe and Azure, so the public-key client certificate will need to be copied to the following directories:

  • C:WindowsSysWOW64configsystemprofileDocumentsFiddler2
  • C:WindowsSystem32configsystemprofileDocumentsFiddler2

So with the basics of the configuration outlined, let’s cover what happens when the ApplicationProxyConnectorService.exe process is started.

  1. Using WireShark I observed the following DNS queries looking for an IP in order to connect to an endpoint for the bootstrap process of the MS AAD Application Proxy.DNS Query for TENANT ID.bootstrap.msappproxy.net
    DNS Response with CNAME of cwap-nam1-runtime.msappproxy.net
    DNS Response with CNAME of cwap-nam1-runtime-main-new.trafficmanager.net
    DNS Response with CNAME of cwap-cu-2.cloudapp.net
    DNS Response with A record of an IP
  2. Within Fiddler I observed the MS AAD Application Proxy establishing a connection to TENANT_ID.bootstrap.msappproxy.net over port 8080. It sets up a TLS 1.0 (yes TLS 1.0, tsk tsk Microsoft) session with mutual authentication. The client certificate that is used for authentication of the MS AAD Application Proxy is the certificate I mentioned above.
  3. Fiddler next displayed the MS AAD Application Proxy doing an HTTP POST of the XML content below to the ConnectorBootstrap URI. The key pieces of information provided here are the ConnectorID, MachineName, and SubscriptionID information. My best guess MS consumes this information to determine which URI to redirect the connector to and consumes some of the response information for telemetry purposes.Screen Shot 2017-04-05 at 9.37.04 PM
  4. Fiddler continues to provide details into the bootstrapping process. The MS AAD Application Proxy receives back the XML content provided below and a HTTP 307 Redirect to bootstrap.his.msappproxy.net:8080. My guess here is the process consumes this information to configure itself in preparation for interaction with the Azure Service Bus.Screen Shot 2017-04-05 at 9.37.48 PM
  5. WireShark captured the DNS queries below resolving the IP for the host the process was redirected to in the previous step.DNS Query for bootstrap.his.msappproxy.net
    DNS Response with CNAME of his-nam1-runtime-main.trafficmanager.net
    DNS Response with CNAME of his-eus-1.cloudapp.net
    DNS Response with A record of 104.211.32.215
  6. Back to Fiddler I observed the connection to bootstrap.his.msappproxy.net over port 8080 and setup of a TLS 1.0 session with mutual authentication using the client certificate again. The process does an HTTP POST of the XML content  below to the URI of ConnectorBootstrap?his_su=NAM1. More than likely this his_su variable was determined from the initial bootstrap to the tenant ID endpoint. The key pieces of information here are the ConnectorID, SubscriptionID, and telemetry information.
    Screen-Shot-2017-04-05-at-9.35.52-PM
  7. The next session capture shows the process received back the XML response below. The key pieces of content relevant here are within the SignalingListenerEndpointSettings section.. Interesting pieces of information here are:
    • Name – his-nam1-eus1/TENANTID_CONNECTORID
    • Namespace – his-nam1-eus1
    • ServicePath – TENANTID_UNIQUEIDENTIFIER
    • SharedAccessKey

    This information is used by the MS AAD Application Proxy to establish listeners to two separate service endpoints at the Azure Service Bus. The proxy uses the SharedAccessKeys to authenticate to authenticate to the endpoints. It will eventually use the relay service offered by the Azure Service Bus.

    Screen Shot 2017-04-05 at 9.34.43 PM

  8. WireShark captured the DNS queries below resolving the IP for the service bus endpoint provided above. This query is performed twice in order to set up the two separate tunnels to receive relays.DNS Query for his-nam1-eus1.servicebus.windows.net
    DNS Response with CNAME of ns-sb2-prod-bl3-009.cloudapp.net
    DNS Response with IP

    DNS Query for his-nam1-eus1.servicebus.windows.net
    DNS Response with CNAME of ns-sb2-prod-dm2-009.cloudapp.net
    DNS Response with different IP

  9. The MS AAD Application Proxy establishes connections with the two IPs received from above. These connections are established to port 5671. These two connections establish the MS AAD Application Proxy as a listener service with the Azure Service Bus to consume the relay services.
  10. At this point the MS AAD Application Proxy has connected to the Azure Service Bus to the his-nam1-cus1 namespace as a listener and is in the listen state. It’s prepared to receive requests from Azure AD (the sender), for verifications of authentication. We’ll cover this conversation a bit in the next few steps.When a synchronized user in the journeyofthegeek.com tenant accesses the Azure login screen and plugs in a set of credentials, Azure AD (the sender) connects to the relay and submits the authentication request. Like the initial MS AAD Application Proxy connection to the Azure Relay service, I was unable to capture the transactions in Fiddler. However, I was able to some of the conversation with API Monitor.

    I pieced this conversation together by reviewing API calls to the ncryptsslp.dll and looking at the output for the BCryptDecrypt method and input for the BCryptEncrypt method. While the data is ugly and the listeners have already been setup, we’re able to observe some of the conversation that occurs when the sender (Azure AD) sends messages to the listener (MS AAD Application Proxy) via the service (Azure Relay). Based upon what I was able to decrypt, it seems like one-way asynchronous communication where the MS AAD Application Proxy listens receives messages from Azure AD.

    Screen Shot 2017-04-05 at 9.38.40 PM

  11. The LogonUserW method is called from CLR.DLL and the user’s user account name, domain, and password is plugged. Upon a successful return and the authentication is valided, the MS AAD Application Proxy initiates an HTTP POST to
    his-eus-1.connector.his.msappproxy.net:10101/subscriber/connection?requestId=UNIQUEREQUESTID. The post contains a base64 encoded JWT with the information below. Unfortunately I was unable to decode the bytestream, so I can only guess what’s contained in there.{“JsonBytes”:[bytestream],”PrimarySignature”:[bytestream],”SecondarySignature”:null}

So what did we learn? Well we know that the Azure AD Pass-through authentication uses multiple Microsoft components including the MS AAD Application Proxy, Azure Service Bus (Relay), Azure AD, and Active Directory Domain Services. The authentication request is exchanged between Azure AD and the ApplicationProxyConnectorService.exe process running on the on-premises server via relay function of the Azure Service Bus.

The ApplicationProxyConnectorService.exe process authenticates to the URI where the bootstrap process occurs using a client certificate. After bootstrap the ApplicationProxyConnectorService.exe process obtains the shared access keys it will use to establish itself as a listener to the appropriate namespace in the Azure Relay. The process then establishes connection with the relay as a listener and waits for messages from Azure AD. When these messages are received, at the least the user’s password is encrypted with the public key of the client certificate (other data may be as well but I didn’t observe that).

When the messages are decrypted, the username, domain, and password is extracted and used to authenticate against AD DS. If the authentication is successful, a message is delivered back to Azure AD via the MS AAD Application Proxy service running in Azure.

Neato right? There are lots of moving parts behind this solution, but the finesse in which they’re integrated and executed make them practically invisible to the consumer. This is a solid out of the box solution and I can see why Microsoft markets in the way it does. I do have concerns that the solution is a bit of a black box and that companies leveraging it may not understand how troubleshoot issues that occur with it, but I guess that’s what Premier Services and Consulting Service is for right Microsoft? 🙂

Digging deep into the AD DS workstation logon process – Part 2

Welcome back.

Today I will continue my analysis of the workstation logon process. Please take a read through Part 1 if you haven’t already. We left off with the workstation obtaining a Kerberos service ticket in order to authenticate to the domain controller to access the SMB share.

Ready? Let’s go!

  1. Source: Domain-joined machine
    Destination: Same Site or Closest Site Domain Controller
    Connection: TCP
    Port: 445
    Protocol: SMB
    Purpose: The domain-joined workstation requests a new authenticated SMB session with the domain controller and provides its Kerberos service ticket as proof of authentication.
    Links:

  2. Source: Domain-joined machine
    Destination: Primary DNS Server
    Connection: UDP
    Port: 53
    Protocol: DNS
    Purpose: DsGetDcName API issues a DNS query for an SRV record to the domain-joined machine’s primary DNS server for a domain controller offering the Kerberos service within its site using the SRV record of _ldap._tcp.FAKESITE._sites.dc._msdcs.contoso.local. The primary DNS server returns the results of the SRV query.

  3. Source: Domain-joined machine
    Destination: Domain Controller resolved from IP returned from previous step
    Connection: UDP
    Port: 389
    Protocol: LDAP
    Purpose: DsGetDcName API on domain-joined machine issues a specially crafted LDAP query (referred to by Microsoft as an LDAP Ping) to the domain controller it receives back from the query and then queries the RootDSE for the NetLogon attribute. The detail query is as follows:

    • Filter: (&(DnsDomain=)(Host=HOSTNAME)(DomainGUID=)(NtVer=)(DnsHostName=))
    • Attributes: NetLogon

    The domain controller passes the query to the NetLogon service running on the domain controller which evaluates the query to determine which site the server belongs in. The domain controller returns information about its state and provides the information detailed below (https://msdn.microsoft.com/en-us/library/cc223807.aspx):

    • Flags:
      • DSPDCFLAG – DC is PDC of the domain
      • DSGCFLAG – DC is a GC of the forest
      • DSLDAPFLAG – Server supports an LDAP server
      • DSDSFlag- DC supports a DS and is a domain controller
      • DSKDCFlag DC is running KDC service
      • DSTimeServFlag – DC is running time service
      • DSClosestFlag – DC is in the closest site to the client
      • DSWritableFLag – DC has a writable DS
      • DSGoodTimeServFlag (0) – DC is running time service
      • DSNDNCFlag – DomainName is a non-domain NC serviced by the LDAP server
      • DSSelectSecretDomain6Flag – the server is a not an RODC
      • DSFullSecretDomain6Flag – The server is a writable DC
      • DSWSFlag – The Active Directory Web Service is present on the server
      • DSDNSControllerFlag – DomainControllerName is not a DNS name
      • DSDNSDomainFlag – DomainName is not a DNS name
      • DSDNSForestFlag – DnsForestName is not a DNS name
    • DomainGuid:
    • DnsForestName: contoso.local
    • DnsDomainName: contoso.local
    • DnsHostName: dc2.contoso.local
    • NetbiosDomainName: CONTOSO
    • NetbiosComputerName: DC2
    • Username:
    • DcSiteName: FAKESITE
    • ClientSiteName: FAKESITE
    • NextClosestSIteName: Default-First-Site-Name

    The client caches this information to its DCLocator cache.

  4. Source: Domain-joined machine
    Destination: Same Site or Closest Site Domain Controller
    Connection: TCP
    Port: 445
    Protocol: SMB
    Purpose: The domain-joined workstation sends an SMB TREE CONNECT Request to the domain controller for the IPC$ share accessed by \IPC$. The IPC$ share is used to setup a named pipe for further RPC calls to the service such as allowing the workstation to enumerate the shares available on the server. The domain controller responds with an SMB TREE CONNECT Response providing information about the capabilities of the IPC$ share.
    Links:

  5. Source: Domain-joined machine
    Destination: Same Site or Closest Site Domain Controller
    Connection: TCP
    Port: 445
    Protocol: SMB
    Purpose: The domain-joined workstation sends an SMB IOCTL Request to the domain controller with the control FSCTL_VALIDATE_NEGOTIATE_INFO (0x00140204). This control is used to verify that the domain controller hasn’t changed the authentication mechanism originally negotiated. The domain controller responds with an SMB IOCTL Response confirming the authentication mechanism has not changed. This helps to prevent man in the middle attacks.
    Links:

  6. Source: Domain-joined machine
    Destination: Same Site or Closest Site Domain Controller
    Connection: TCP
    Port: 445
    Protocol: SMB
    Purpose: The domain-joined workstation sends an SMB IOCTL Request to the domain controller with the control FSCTL_QUERY_NETWORK_INTERFACE_INFO (0x001401FC). This control is used to determine whether or not the server has multiple IPs and a new channel should be established. The domain controller responds with an SMB IOCTL Response providing an answer.
    Links:

  7. Source: Domain-joined machine
    Destination: Same Site or Closest Site Domain Controller
    Connection: TCP
    Port: 445
    Protocol: SMB
    Purpose: The domain-joined workstation sends an SMB IOCTL Request to the domain controller with the control SCTL_DFS_GET_REFERRALS (0x00060194). This control requests the DFS referral for the domain-based DNS root. The domain controller responds with an SMB IOCTL Response providing an answer with an entry for the FQDN and NetBios entries.
    Links:

  8. Source: Domain-joined machine
    Destination: Primary DNS Server
    Connection: UDP
    Port: 389
    Protocol: LDAP
    Purpose: The domain-joined workstation sends a DNS query for the A record for the second domain controller record it received back in the initial queries for the various SRV records. The domain controller responds with the answer to the DNS query.

  9. Source: Domain-joined machine
    Destination: Domain Controller resolved from IP returned from previous step
    Connection: UDP
    Port: 389
    Protocol: LDAP
    Purpose: DsGetDcName API on domain-joined machine issues a specially crafted LDAP query (referred to by Microsoft as an LDAP Ping) to the domain controller it receives back from the query and then queries the RootDSE for the NetLogon attribute. The detail query is as follows:

    • Filter: (&(DnsDomain=)(Host=HOSTNAME)(DomainGUID=)(NtVer=)(DnsHostName=))
    • Attributes: NetLogon

    The domain controller passes the query to the NetLogon service running on the domain controller which evaluates the query to determine which site the server belongs in. The domain controller returns information about its state and provides the information detailed below (https://msdn.microsoft.com/en-us/library/cc223807.aspx):

    • Flags:
      • DSPDCFLAG – DC is PDC of the domain
      • DSGCFLAG – DC is a GC of the forest
      • DSLDAPFLAG – Server supports an LDAP server
      • DSDSFlag- DC supports a DS and is a domain controller
      • DSKDCFlag DC is running KDC service
      • DSTimeServFlag – DC is running time service
      • DSClosestFlag – DC is in the closest site to the client
      • DSWritableFLag – DC has a writable DS
      • DSGoodTimeServFlag (0) – DC is running time service
      • DSNDNCFlag – DomainName is a non-domain NC serviced by the LDAP server
      • DSSelectSecretDomain6Flag – the server is a not an RODC
      • DSFullSecretDomain6Flag – The server is a writable DC
      • DSWSFlag – The Active Directory Web Service is present on the server
      • DSDNSControllerFlag – DomainControllerName is not a DNS name
      • DSDNSDomainFlag – DomainName is not a DNS name
      • DSDNSForestFlag – DnsForestName is not a DNS name
    • DomainGuid:
    • DnsForestName: contoso.local
    • DnsDomainName: contoso.local
    • DnsHostName: DCSERVER.contoso.local
    • NetbiosDomainName: CONTOSO
    • NetbiosComputerName: DCSERVER
    • Username:
    • DcSiteName: Default-First-Site-Name
    • ClientSiteName: FAKESITE
    • NextClosestSIteName: Default-First-Site-Name

    The client caches this information to its DCLocator cache.

All right folks, we’re going to break here. My next post will continue with the NetLogon process.

Thanks and see you then!
